Product Features:

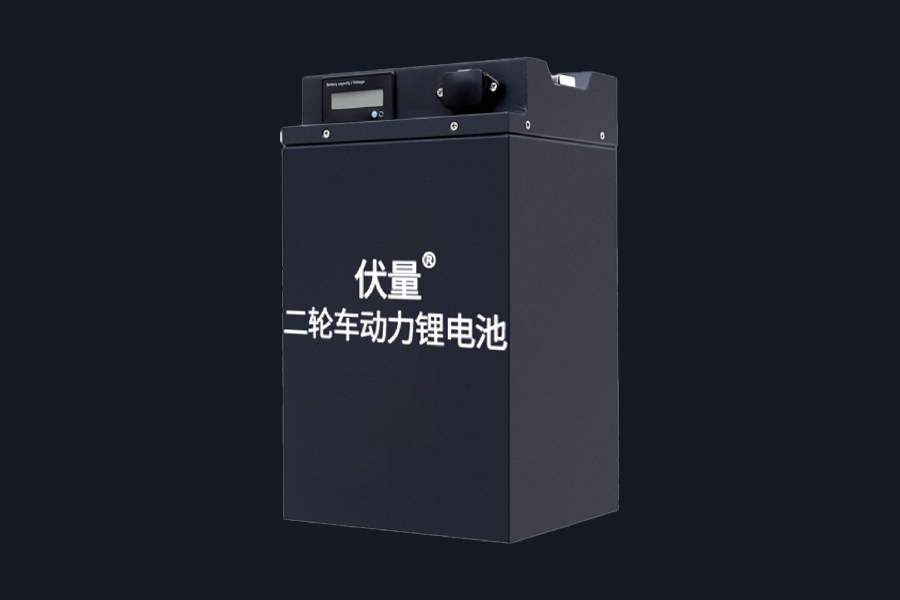

This product is a lithium iron phosphate battery pack specifically designed for electric vehicles. The battery pack features electrical protection functions (including overcurrent protection, short circuit protection, overvoltage protection, undervoltage protection, and overtemperature protection) to maintain battery balance and self-protection during long-term use, ensuring the long-term reliable operation of the battery system. The battery utilizes advanced battery manufacturing processes, resulting in excellent consistency, high energy density, long lifespan, safety, reliability, and a wide operating temperature range.
Technical parameters
| Battery pack matters | Common parameters |
|---|---|
| Battery Model | FC-48V30Ah |
| Size LWH | 180*160*320mm（(Different capacities have different sizes)） |
| nominal voltage | 51.8V (single section 3.7*14S) |
| nominal capacity | 30Ah (±1) (40Ah-120Ah Optional) |
| Cell type | Ternary lithium batteries (lithium iron phosphate optional) |
| Charging limit voltage | 58.8V CC-CV |
| Discharge cutoff voltage | 39.2V (single section 2.8*14S) |
| Charging current Max | continued 20A CC-CV |
| Discharge current Max | continued 40A |
| working temperature | Charge 0~55℃ Discharge – 20~65℃ |
| Cycle life | ≥2000 cycles (80% capacity retention; Lithium iron phosphate ≥3000 cycles) |
| BMS overcurrent | 40A (Max 150A optional) |
| BMS communication method | None, (optional 485/CAN) |
| Intelligent Optional Features | Internet of Things, GPS |
| Model/Specification | style | Outer carton dimensions/mm | color | Protection board | weight | charger |
| 48V25-40AH | Vertical | 310*180*160 | Black body / Orange or blue lid | 15-series 50A | Approximately 13KG | 54.75V3A |
| Horizontal | 310*180*160 | Black body / Orange or blue lid | 15-series 50A | Approximately 13KG | 54.75V3A | |
| 48V50-60AH | Vertical | 320*200*165 | Black body / Orange or blue lid | 15-series 50A | Approximately 17KG | 54.75V5A |
| Horizontal | 360*220*165 | Black body / Orange or blue lid | 15-series 50A | Approximately 17KG | 54.75V5A | |
| 48V70-80AH | Vertical | 380*215*160 | Black body / Orange or blue lid | 15-series 50A | Approximately 23KG | 54.75V8A |
| Horizontal | 400*220*170 | Black body / Orange or blue lid | 15-series 80A | Approximately 23KG | 54.75V8A | |
| 48V100AH | Horizontal | 420*220*210 | Black body / Orange or blue lid | 15-series 80A | Approximately 26KG | 54.75V8A |
| 60V25-40AH | Vertical | 300*210*170 | Black body / Orange or blue lid | 20-series 50A | Approximately 15KG | 73V3A |
| Horizontal | 300*210*170 | Black body / Orange or blue lid | 20-series 50A | Approximately 15KG | 73V3A | |
| 60V50-60AH | Vertical | 320*210*180 | Black body / Orange or blue lid | 20-series 50A | Approximately 22KG | 73V5A |
| Horizontal | 420*230*180 | Black body / Orange or blue lid | 20-series 50A | Approximately 24KG | 73V5A | |
| 60V70-80AH | Vertical | 380*210*195 | Black body / Orange or blue lid | 20-series 80A | Approximately 30KG | 73V5A |
| Horizontal | 480*220*210 | Black body / Orange or blue lid | 20-series 80A | Approximately 32KG | 73V5A | |
| 60V100AH | Horizontal | 540*220*210 | Black body / Orange or blue lid | 20-series 80A | Approximately 36KG | 73V8A |
| 72V30-40AH | Vertical | 300*235*170 | Black body / Orange or blue lid | 24-series 50A | Approximately 18KG | 87.6V3A |
| Horizontal | 350*235*170 | Black body / Orange or blue lid | 24-series 50A | Approximately 20KG | 87.6V3A | |
| 72V50-60AH | Vertical | 320*230*220 | Black body / Orange or blue lid | 24-series 50A | Approximately 28KG | 87.6V5A |
| Horizontal | 520*220*200 | Black body / Orange or blue lid | 24-series 50A | Approximately 30KG | 87.6V5A | |
| 72V70-80AH | Vertical | 388*235*175 | Black body / Orange or blue lid | 24-series 80A | Approximately 35KG | 87.6V8A |
| Horizontal | 480*220*200 | Black body / Orange or blue lid | 24-series 80A | Approximately 37 kg | 87.6V8A |
